前言

Nginx 官方的Ingress比K8S社区版本自带的Ingress在可配置性、与原生官方Nginx的团队的支持更加紧密，在容器化浪潮的今天，不失为一种选择，当然也有其它的方案比如Traefix,APISIX等；就看大家怎样取舍。

Tip：本文章摘自“DevOps 社区线上公益课容器化应用的动态发布实验手册”

NGINX KIC 架构

NGINX KIC安装指南

本实验提供了一个单节点的K8S集群，Master和Worker Node都在一台Ubuntu服务器上，相关系统版本如下：

系统版本：Ubuntu 18.04.4 LTS
K8S版本：v1.25.0
NGINX KIC版本：2.3.0
CNI: Flannel

ssh登录服务器后，我们首先确认一下K8S的状态。

root@edu_vlovev_cn:/root# kubectl get nodeNAME     STATUS   ROLES           AGE    VERSIONubuntu   Ready    control-plane   153m   v1.25.0

然后我们开始部署NGINX K8S Ingress Controller，SA、RBAC等前置工作均已做好，只需要完成KIC的Deployment即可。进入/root/kic-oss-lab/0-deployment文件夹，创建nginx-ingress-hostnetwork.yaml文件。

apiVersion: apps/v1kind: Deploymentmetadata:  name: nginx-ingress  namespace: nginx-ingressspec:  replicas: 1  selector:    matchLabels:      app: nginx-ingress  template:    metadata:      labels:        app: nginx-ingress     #annotations:       #prometheus.io/scrape: "true"       #prometheus.io/port: "9113"       #prometheus.io/scheme: http    spec:      serviceAccountName: nginx-ingress      hostNetwork: true      containers:      - image: nginx/nginx-ingress:2.3.0        imagePullPolicy: IfNotPresent        name: nginx-ingress        ports:        - name: http          containerPort: 80        - name: https          containerPort: 443        - name: tcp-8001          containerPort: 8001        - name: tcp-8002          containerPort: 8002        - name: readiness-port          containerPort: 8081        - name: prometheus          containerPort: 9113        readinessProbe:          httpGet:            path: /nginx-ready            port: readiness-port          periodSeconds: 1        resources:          requests:            cpu: "100m"            memory: "128Mi"         #limits:         #  cpu: "1"         #  memory: "1Gi"        securityContext:          allowPrivilegeEscalation: true          runAsUser: 101 #nginx          runAsNonRoot: true          capabilities:            drop:            - ALL            add:            - NET_BIND_SERVICE        env:        - name: POD_NAMESPACE          valueFrom:            fieldRef:              fieldPath: metadata.namespace        - name: POD_NAME          valueFrom:            fieldRef:              fieldPath: metadata.name        args:          - -nginx-configmaps=$(POD_NAMESPACE)/nginx-config          - -default-server-tls-secret=$(POD_NAMESPACE)/default-server-secret         #- -enable-cert-manager         #- -enable-external-dns         #- -v=3 # Enables extensive logging. Useful for troubleshooting.         #- -report-ingress-status         #- -external-service=nginx-ingress         #- -enable-prometheus-metrics          - -global-configuration=$(POD_NAMESPACE)/nginx-configuration

应用以上文件，并确认pod已正常运行。

root@edu_vlovev_cn:/root/kic-oss-lab/0-deployment# kubectl apply -f nginx-ingress-hostnetwork.yaml deployment.apps/nginx-ingress createdroot@edu_vlovev_cn:/root# kubectl get pod -n nginx-ingress NAME                             READY   STATUS    RESTARTS   AGEnginx-ingress-59dfd5855c-nknnr   1/1     Running   0          4m9s

使用curl命令访问本机的80和443端口，如果看到NGINX的页面，即表示KIC部署成功，可以继续下面的实验。root@edu_vlovev_cn:/root# curl 127.0.0.1

root@edu_vlovev_cn:/root# curl 127.0.0.1<html><head><title>404 Not Found</title></head><body><center><h1>404 Not Found</h1></center><hr><center>nginx/1.23.0</center></body></html>root@ubuntu:/root# curl -k https://127.0.0.1<html><head><title>404 Not Found</title></head><body><center><h1>404 Not Found</h1></center><hr><center>nginx/1.23.0</center></body></html>

2.Ingress资源配置

进入/root/kic-oss-lab/1-ingress文件夹，依次应用以下文件，创建应用和TLS证书密钥。

root@edu_vlovev_cn_k8s-calico-master:~/kic-oss-lab/1-ingress # kubectl apply -f cafe.yaml -f cafe-secret.yaml deployment.apps/coffee createdservice/coffee-svc createddeployment.apps/tea createdservice/tea-svc createdsecret/cafe-secret createdroot@k8s-calico-master:~/kic-oss-lab/1-ingress #

可以使用curl命令验证后端应用。

root@edu_vlovev_cn_k8s-calico-master:~/kic-oss-lab/1-ingress # kubectl get serviceNAME         TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)   AGEcoffee-svc   ClusterIP   10.98.91.20    <none>        80/TCP    78skubernetes   ClusterIP   10.96.0.1      <none>        443/TCP   104dtea-svc      ClusterIP   10.96.160.45   <none>        80/TCP    78sroot@k8s-calico-master:~/kic-oss-lab/1-ingress # curl 10.98.91.20Server address: 10.244.195.105:80Server name: coffee-87cf76b96-7c2wxDate: 22/Aug/2022:06:58:55 +0000URI: /Request ID: 6cb10905d97c76ed137622a00f45c07broot@k8s-calico-master:~/kic-oss-lab/1-ingress # curl 10.96.160.45Server address: 10.244.195.107:80Server name: tea-7b475f7bcb-sgtmmDate: 22/Aug/2022:06:59:28 +0000URI: /Request ID: 05bae1c95d02a9d000ef9ce58aad255d

创建cafe-ingress.yaml文件。

apiVersion: networking.k8s.io/v1kind: Ingressmetadata:  name: cafe-ingressspec:  tls:  - hosts:    - cafe.example.com    secretName: cafe-secret  rules:  - host: cafe.example.com    http:      paths:      - path: /tea        pathType: Prefix        backend:          service:            name: tea-svc            port:              number: 80      - path: /coffee        pathType: Prefix        backend:          service:            name: coffee-svc            port:              number: 80

应用以上文件。

root@edu_vlovev_cn_k8s-calico-master:~/kic-oss-lab/1-ingress # kubectl apply -f cafe-ingress.yaml ingress.networking.k8s.io/cafe-ingress createdroot@k8s-calico-master:~/kic-oss-lab/1-ingress # kubectl get ingressNAME           CLASS   HOSTS              ADDRESS   PORTS     AGEcafe-ingress   nginx   cafe.example.com             80, 443   11s

使用curl命令访问应用，hosts文件已经编辑好，可以直接访问域名。如果访问http，会被自动跳转至https，也可以直接访问https。

root@edu_vlovev_cn_k8s-calico-master:~/kic-oss-lab/1-ingress # curl -i http://cafe.example.com/teaHTTP/1.1 301 Moved PermanentlyServer: nginx/1.23.0Date: Mon, 22 Aug 2022 07:11:45 GMTContent-Type: text/htmlContent-Length: 169Connection: keep-aliveLocation: https://cafe.example.com:443/tea<html><head><title>301 Moved Permanently</title></head><body><center><h1>301 Moved Permanently</h1></center><hr><center>nginx/1.23.0</center></body></html>root@k8s-calico-master:~/kic-oss-lab/1-ingress # curl -L -k http://cafe.example.com/teaServer address: 10.244.195.107:80Server name: tea-7b475f7bcb-sgtmmDate: 22/Aug/2022:07:12:01 +0000URI: /teaRequest ID: bd6f0a77d948e668d5aca32bc4426584root@k8s-calico-master:~/kic-oss-lab/1-ingress # curl -k https://cafe.example.com/coffeeServer address: 10.244.195.105:80Server name: coffee-87cf76b96-7c2wxDate: 22/Aug/2022:07:12:18 +0000URI: /coffeeRequest ID: e3f2e955672a37fca5268cbf5f526960

多次访问同一URL，通过Server name可以看到在两个pod之间做负载均衡。

修改以上Ingress文件，加入一个annotation，然后kubectl apply。

apiVersion: networking.k8s.io/v1kind: Ingressmetadata:  name: cafe-ingress  annotations:    nginx.org/rewrites: "serviceName=tea-svc rewrite=/;serviceName=coffee-svc rewrite=/beans"spec:  tls:  - hosts:    - cafe.example.com    secretName: cafe-secret  rules:  - host: cafe.example.com    http:      paths:      - path: /tea        pathType: Prefix        backend:          service:            name: tea-svc            port:              number: 80      - path: /coffee        pathType: Prefix        backend:          service:            name: coffee-svc            port:              number: 80

再次用curl命令访问，可以看到uri被改写了。

root@edu_vlovev_cn_k8s-calico-master:~/kic-oss-lab/1-ingress # curl -k https://cafe.example.com/teaServer address: 10.244.195.106:80Server name: tea-7b475f7bcb-sql44Date: 22/Aug/2022:07:19:06 +0000URI: /Request ID: 091059a71d4c4ddfd36dbda30747bba5root@k8s-calico-master:~/kic-oss-lab/1-ingress # curl -k https://cafe.example.com/coffeeServer address: 10.244.195.104:80Server name: coffee-87cf76b96-kb9hzDate: 22/Aug/2022:07:19:12 +0000URI: /beansRequest ID: 0c1755a924c89d213156727a3ab641df

删除所有资源，还原实验环境。

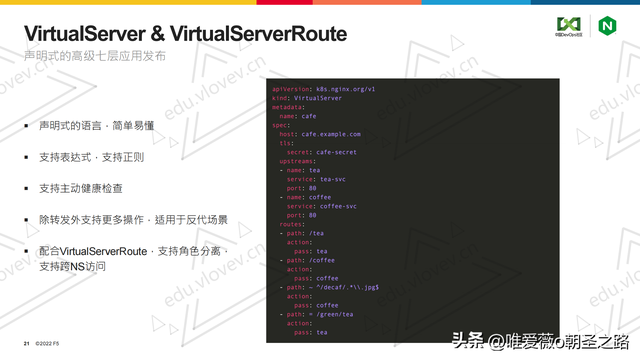

3.Virtual Server和Virtual Server Route资源配置

进入/root/kic-oss-lab/2-vs文件夹，应用文件夹内的所有文件，创建Namespaces和不同NS下的应用。

root@edu_vlovev_cn_k8s-calico-master:~/kic-oss-lab/2-vs # kubectl apply -f namespaces.yaml -f coffee.yaml -f tea.yaml -f cafe-secret.yaml namespace/cafe creatednamespace/tea creatednamespace/coffee createddeployment.apps/coffee createdservice/coffee-svc createddeployment.apps/tea-v1 createdservice/tea-v1-svc createddeployment.apps/tea-v2 createdservice/tea-v2-svc createdsecret/cafe-secret created

依次创建和应用VirtualServer和两个VirtualServerRoute资源，首先是cafe-virtual-server.yaml

apiVersion: k8s.nginx.org/v1kind: VirtualServermetadata:  name: cafe  namespace: cafespec:  host: cafe.example.com  tls:    secret: cafe-secret  routes:  - path: /tea    route: tea/tea  - path: /coffee    route: coffee/coffee

然后是coffee-virtual-server-route.yaml

apiVersion: k8s.nginx.org/v1kind: VirtualServerRoutemetadata:  name: coffee   namespace: coffeespec:  host: cafe.example.com  upstreams:  - name: coffee     service: coffee-svc    port: 80  subroutes:  - path: /coffee    action:      proxy:        upstream: coffee        requestHeaders:          pass: true          set:          - name: My-Header            value: F5-Best        responseHeaders:          add:          - name: My-Header            value: ${http_user_agent}          - name: IC-Nginx-Version            value: ${nginx_version}            always: true        rewritePath: /coffee/rewrite

最后是tea-virtual-server-route.yaml

apiVersion: k8s.nginx.org/v1kind: VirtualServerRoutemetadata:  name: tea   namespace: teaspec:  host: cafe.example.com  upstreams:  - name: tea-v1    service: tea-v1-svc    port: 80  - name: tea-v2     service: tea-v2-svc    port: 80  subroutes:  - path: /tea    matches:    - conditions:      - cookie: version        value: v2      action:        pass: tea-v2    action:      pass: tea-v1

我们首先观察一下应用服务，可以看到coffee和tea服务是分别在不同的Namespace下的，而tea还分了v1和v2版本。

首先使用curl命令来访问coffee应用，除了可以正常访问应用外，可以看到我们通过KIC插入的Header，另外就是uri被改写了。

root@edu_vlovev_cn_k8s-calico-master:~/kic-oss-lab/2-vs # curl -k -i https://cafe.example.com/coffeeHTTP/1.1 200 OKServer: nginx/1.23.0Date: Mon, 22 Aug 2022 07:38:52 GMTContent-Type: text/plainContent-Length: 172Connection: keep-aliveExpires: Mon, 22 Aug 2022 07:38:51 GMTCache-Control: no-cacheMy-Header: curl/7.58.0IC-Nginx-Version: 1.23.0Server address: 10.244.195.109:8080Server name: coffee-7b9b4bbd99-zzc7vDate: 22/Aug/2022:07:38:52 +0000URI: /coffee/rewriteRequest ID: 330ac344e70abff73852bc00d6d563a2

接下来访问tea应用，可以看到如果我们带上version=v2的cookie，就会访问到v2版本的tea应用，而不带cookie或者cookie值不等于v2都会访问到v1版本的tea应用。

root@edu_vlovev_cn_k8s-calico-master:~/kic-oss-lab/2-vs # curl -k https://cafe.example.com/teaServer address: 10.244.195.108:8080Server name: tea-v1-99bf9564c-lkc2gDate: 22/Aug/2022:07:41:40 +0000URI: /teaRequest ID: 4ce5951672e31777edd0ef325fed08c9root@k8s-calico-master:~/kic-oss-lab/2-vs # curl -k --cookie "version=v2" https://cafe.example.com/teaServer address: 10.244.195.110:8080Server name: tea-v2-6c9df94f67-2d7f7Date: 22/Aug/2022:07:42:02 +0000URI: /teaRequest ID: b376f7bc50a0536e6f73df37ae7bd767

删除刚才应用的所有资源，还原实验环境。

4.TransportServer资源配置

进入/root/kic-oss-lab/3-ts文件夹，首先应用cafe.yaml创建后端应用。新建globalconfiguration-listener.yaml文件，为KIC创建新的Listener。

apiVersion: k8s.nginx.org/v1alpha1kind: GlobalConfiguration metadata:  name: nginx-configuration  namespace: nginx-ingressspec:  listeners:  - name: tcp-8001    port: 8001    protocol: TCP  - name: tcp-8002    port: 8002    protocol: TCP

应用以上文件后，再分别创建和应用两个TranportServer资源，首先是ts-coffee.yaml。

apiVersion: k8s.nginx.org/v1alpha1kind: TransportServermetadata:  name: coffeespec:  listener:    name: tcp-8001    protocol: TCP  upstreams:  - name: coffee    service: coffee-svc    port: 80  action:    pass: coffee

然后是ts-tea.yaml

apiVersion: k8s.nginx.org/v1alpha1kind: TransportServermetadata:  name: teaspec:  listener:    name: tcp-8002    protocol: TCP  upstreams:  - name: tea    service: tea-svc    port: 80  action:    pass: tea

以上资源都应用完成后，就可以通过IP:Port的方式访问tea和coffee应用了。

root@edu_vlovev_cn_k8s-calico-master:~/kic-oss-lab/3-ts # curl http://127.0.0.1:8001Server address: 10.244.195.112:80Server name: coffee-87cf76b96-9dnl8Date: 22/Aug/2022:07:53:38 +0000URI: /Request ID: 121cbef18ecabaeb2e2c15943d8745b2root@k8s-calico-master:~/kic-oss-lab/3-ts # curl http://127.0.0.1:8002Server address: 10.244.195.113:80Server name: tea-7b475f7bcb-vnj5kDate: 22/Aug/2022:07:53:43 +0000URI: /Request ID: abb07e6f0ffde9e053ba58fd06db44b2

删除相关资源配置，但是请注意globalconfiguration这个资源千万不要删除！ 如果要删除Listener，可以应用一个空的globalconfiguration资源。

5.Policy资源

进入/root/kic-oss-lab/4-policy文件夹，先应用webapp.yaml，部署后端应用。然后创建并应用rate-limit.yaml文件。

apiVersion: k8s.nginx.org/v1kind: Policymetadata:  name: rate-limit-policyspec:  rateLimit:    rate: 100r/s    burst: 50    noDelay: true    key: ${binary_remote_addr}    zoneSize: 10M    rejectCode: 444

再创建和应用virtual-server.yaml文件，在VS中调用Policy，不过我们先把Policy部分注释。

apiVersion: k8s.nginx.org/v1kind: VirtualServermetadata:  name: cafespec:  host: cafe.example.com  #policies:  #- name: rate-limit-policy  upstreams:  - name: webapp    service: webapp-svc    port: 80  routes:  - path: /    action:      pass: webapp

在注释掉Policy的情况下，我们通过wrk进行一个简单的压测。

root@edu_vlovev_cn_k8s-calico-master:~/kic-oss-lab/4-policy # wrk -t2 -c10 -d10s http://cafe.example.comRunning 10s test @ http://cafe.example.com  2 threads and 10 connections  Thread Stats   Avg      Stdev     Max   +/- Stdev    Latency     3.99ms    3.59ms  45.17ms   84.71%    Req/Sec     1.52k     0.94k    2.91k    40.50%  30332 requests in 10.01s, 10.76MB readRequests/sec:   3031.01Transfer/sec:      1.08MB

可以看到rps在3000左右（根据环境不同可能数值会有不同，但一定远大于100）。然后我们把VS中的注释删除，让Policy生效。

apiVersion: k8s.nginx.org/v1kind: VirtualServermetadata:  name: cafespec:  host: cafe.example.com  policies:  - name: rate-limit-policy  upstreams:  - name: webapp    service: webapp-svc    port: 80  routes:  - path: /    action:      pass: webapp

再次通过wrk用相同命令进行压测。

root@edu_vlovev_cn_k8s-calico-master:~/kic-oss-lab/4-policy # wrk -t2 -c10 -d10s http://cafe.example.comRunning 10s test @ http://cafe.example.com  2 threads and 10 connections  Thread Stats   Avg      Stdev     Max   +/- Stdev    Latency    18.49ms   23.31ms 212.68ms   83.37%    Req/Sec    52.36     31.83   343.00     86.43%  1045 requests in 10.00s, 379.63KB read  Socket errors: connect 0, read 85782, write 0, timeout 0Requests/sec:    104.48Transfer/sec:     37.96KB

这次可以看到，rps被控制在了100左右。如果我们查看KIC的日志，可以看到rps超出阈值被响应444的日志。

127.0.0.1 - - [22/Aug/2022:09:09:28 +0000] "GET / HTTP/1.1" 444 0 "-" "-" "-"127.0.0.1 - - [22/Aug/2022:09:09:28 +0000] "GET / HTTP/1.1" 444 0 "-" "-" "-"2022/08/22 09:09:28 [error] 128#128: *117569 limiting requests, excess: 50.900 by zone "pol_rl_default_rate-limit-policy_default_cafe", client: 127.0.0.1, server: cafe.example.com, request: "GET / HTTP/1.1", host: "cafe.example.com"127.0.0.1 - - [22/Aug/2022:09:09:28 +0000] "GET / HTTP/1.1" 444 0 "-" "-" "-"2022/08/22 09:09:28 [error] 127#127: *117568 limiting requests, excess: 50.900 by zone "pol_rl_default_rate-limit-policy_default_cafe", client: 127.0.0.1, server: cafe.example.com, request: "GET / HTTP/1.1", host: "cafe.example.com"127.0.0.1 - - [22/Aug/2022:09:09:28 +0000] "GET / HTTP/1.1" 444 0 "-" "-" "-"2022/08/22 09:09:28 [error] 127#127: *117570 limiting requests, excess: 50.900 by zone "pol_rl_default_rate-limit-policy_default_cafe", client: 127.0.0.1, server: cafe.example.com, request: "GET / HTTP/1.1", host: "cafe.example.com"127.0.0.1 - - [22/Aug/2022:09:09:28 +0000] "GET / HTTP/1.1" 444 0 "-" "-" "-"2022/08/22 09:09:28 [error] 127#127: *117571 limiting requests, excess: 50.900 by zone "pol_rl_default_rate-limit-policy_default_cafe", client: 127.0.0.1, server: cafe.example.com, request: "GET / HTTP/1.1", host: "cafe.example.com"

删除所有资源，还原实验环境。

至此，本次活动中《容器化应用的动态发布》部分的实验就全部完成了！
