1、K8s是什么

2、架构

1、工作方式

2、组件架构

1、控制平面组件(Control Plane Components)

2、Node 组件

3、形象化理解各组件的意义

3、kubeadm创建集群

1、centos下安装docker

1、移除以前docker相关包

2、配置yum源

3、安装docker

4、启动

5、配置加速

6、查看阿里云的镜像加速器

1、安装kubeadm

0.机器准备

1、基础环境

2、安装kubelet、kubeadm、kubectl

2、使用kubeadm引导集群

1、下载各个机器需要的镜像

2、初始化主节点

3、根据提示继续

4、加入node节点

5、验证集群

6、部署dashboard

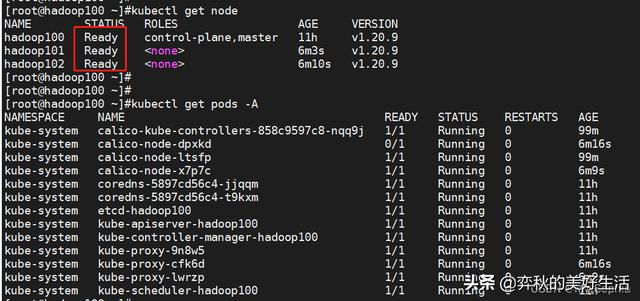

5、验证集群


  • 验证集群节点状态


  • kubectl get nodes


需要等pods 的镜像拉去完之后,node才会ready。


安装Kubernetes集群(2)

安装Kubernetes集群(2)


6、部署dashboard


1、部署


kubernetes官方提供的可视化界面


GitHub - kubernetes/dashboard: General-purpose web UI for Kubernetes clusters


kubectl apply -f https://raw.githubusercontent.com/kubernetes/dashboard/v2.3.1/aio/deploy/recommended.yaml


如果网络不通,直接将此文件copy一份,使用 kubectl apply -f k8s-dash.yaml,运行即可


# Copyright 2017 The Kubernetes Authors.## Licensed under the Apache License, Version 2.0 (the "License");# you may not use this file except in compliance with the License.# You may obtain a copy of the License at##     http://www.apache.org/licenses/LICENSE-2.0## Unless required by applicable law or agreed to in writing, software# distributed under the License is distributed on an "AS IS" BASIS,# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.# See the License for the specific language governing permissions and# limitations under the License.apiVersion: v1kind: Namespacemetadata:  name: kubernetes-dashboard---apiVersion: v1kind: ServiceAccountmetadata:  labels:    k8s-app: kubernetes-dashboard  name: kubernetes-dashboard  namespace: kubernetes-dashboard---kind: ServiceapiVersion: v1metadata:  labels:    k8s-app: kubernetes-dashboard  name: kubernetes-dashboard  namespace: kubernetes-dashboardspec:  ports:    - port: 443      targetPort: 8443  selector:    k8s-app: kubernetes-dashboard---apiVersion: v1kind: Secretmetadata:  labels:    k8s-app: kubernetes-dashboard  name: kubernetes-dashboard-certs  namespace: kubernetes-dashboardtype: Opaque---apiVersion: v1kind: Secretmetadata:  labels:    k8s-app: kubernetes-dashboard  name: kubernetes-dashboard-csrf  namespace: kubernetes-dashboardtype: Opaquedata:  csrf: ""---apiVersion: v1kind: Secretmetadata:  labels:    k8s-app: kubernetes-dashboard  name: kubernetes-dashboard-key-holder  namespace: kubernetes-dashboardtype: Opaque---kind: ConfigMapapiVersion: v1metadata:  labels:    k8s-app: kubernetes-dashboard  name: kubernetes-dashboard-settings  namespace: kubernetes-dashboard---kind: RoleapiVersion: rbac.authorization.k8s.io/v1metadata:  labels:    k8s-app: kubernetes-dashboard  name: kubernetes-dashboard  namespace: kubernetes-dashboardrules:  # Allow Dashboard to get, update and delete Dashboard exclusive secrets.  - apiGroups: [""]    resources: ["secrets"]    resourceNames: ["kubernetes-dashboard-key-holder", "kubernetes-dashboard-certs", "kubernetes-dashboard-csrf"]    verbs: ["get", "update", "delete"]    # Allow Dashboard to get and update 'kubernetes-dashboard-settings' config map.  - apiGroups: [""]    resources: ["configmaps"]    resourceNames: ["kubernetes-dashboard-settings"]    verbs: ["get", "update"]    # Allow Dashboard to get metrics.  - apiGroups: [""]    resources: ["services"]    resourceNames: ["heapster", "dashboard-metrics-scraper"]    verbs: ["proxy"]  - apiGroups: [""]    resources: ["services/proxy"]    resourceNames: ["heapster", "http:heapster:", "https:heapster:", "dashboard-metrics-scraper", "http:dashboard-metrics-scraper"]    verbs: ["get"]---kind: ClusterRoleapiVersion: rbac.authorization.k8s.io/v1metadata:  labels:    k8s-app: kubernetes-dashboard  name: kubernetes-dashboardrules:  # Allow Metrics Scraper to get metrics from the Metrics server  - apiGroups: ["metrics.k8s.io"]    resources: ["pods", "nodes"]    verbs: ["get", "list", "watch"]---apiVersion: rbac.authorization.k8s.io/v1kind: RoleBindingmetadata:  labels:    k8s-app: kubernetes-dashboard  name: kubernetes-dashboard  namespace: kubernetes-dashboardroleRef:  apiGroup: rbac.authorization.k8s.io  kind: Role  name: kubernetes-dashboardsubjects:  - kind: ServiceAccount    name: kubernetes-dashboard    namespace: kubernetes-dashboard---apiVersion: rbac.authorization.k8s.io/v1kind: ClusterRoleBindingmetadata:  name: kubernetes-dashboardroleRef:  apiGroup: rbac.authorization.k8s.io  kind: ClusterRole  name: kubernetes-dashboardsubjects:  - kind: ServiceAccount    name: kubernetes-dashboard    namespace: kubernetes-dashboard---kind: DeploymentapiVersion: apps/v1metadata:  labels:    k8s-app: kubernetes-dashboard  name: kubernetes-dashboard  namespace: kubernetes-dashboardspec:  replicas: 1  revisionHistoryLimit: 10  selector:    matchLabels:      k8s-app: kubernetes-dashboard  template:    metadata:      labels:        k8s-app: kubernetes-dashboard    spec:      containers:        - name: kubernetes-dashboard          image: kubernetesui/dashboard:v2.3.1          imagePullPolicy: Always          ports:            - containerPort: 8443              protocol: TCP          args:            - --auto-generate-certificates            - --namespace=kubernetes-dashboard            # Uncomment the following line to manually specify Kubernetes API server Host            # If not specified, Dashboard will attempt to auto discover the API server and connect            # to it. Uncomment only if the default does not work.            # - --apiserver-host=http://my-address:port          volumeMounts:            - name: kubernetes-dashboard-certs              mountPath: /certs              # Create on-disk volume to store exec logs            - mountPath: /tmp              name: tmp-volume          livenessProbe:            httpGet:              scheme: HTTPS              path: /              port: 8443            initialDelaySeconds: 30            timeoutSeconds: 30          securityContext:            allowPrivilegeEscalation: false            readOnlyRootFilesystem: true            runAsUser: 1001            runAsGroup: 2001      volumes:        - name: kubernetes-dashboard-certs          secret:            secretName: kubernetes-dashboard-certs        - name: tmp-volume          emptyDir: {}      serviceAccountName: kubernetes-dashboard      nodeSelector:        "kubernetes.io/os": linux      # Comment the following tolerations if Dashboard must not be deployed on master      tolerations:        - key: node-role.kubernetes.io/master          effect: NoSchedule---kind: ServiceapiVersion: v1metadata:  labels:    k8s-app: dashboard-metrics-scraper  name: dashboard-metrics-scraper  namespace: kubernetes-dashboardspec:  ports:    - port: 8000      targetPort: 8000  selector:    k8s-app: dashboard-metrics-scraper---kind: DeploymentapiVersion: apps/v1metadata:  labels:    k8s-app: dashboard-metrics-scraper  name: dashboard-metrics-scraper  namespace: kubernetes-dashboardspec:  replicas: 1  revisionHistoryLimit: 10  selector:    matchLabels:      k8s-app: dashboard-metrics-scraper  template:    metadata:      labels:        k8s-app: dashboard-metrics-scraper      annotations:        seccomp.security.alpha.kubernetes.io/pod: 'runtime/default'    spec:      containers:        - name: dashboard-metrics-scraper          image: kubernetesui/metrics-scraper:v1.0.6          ports:            - containerPort: 8000              protocol: TCP          livenessProbe:            httpGet:              scheme: HTTP              path: /              port: 8000            initialDelaySeconds: 30            timeoutSeconds: 30          volumeMounts:          - mountPath: /tmp            name: tmp-volume          securityContext:            allowPrivilegeEscalation: false            readOnlyRootFilesystem: true            runAsUser: 1001            runAsGroup: 2001      serviceAccountName: kubernetes-dashboard      nodeSelector:        "kubernetes.io/os": linux      # Comment the following tolerations if Dashboard must not be deployed on master      tolerations:        - key: node-role.kubernetes.io/master          effect: NoSchedule      volumes:        - name: tmp-volume          emptyDir: {}


2、设置访问端口


kubectl edit svc kubernetes-dashboard -n kubernetes-dashboard


type: ClusterIP 改为 type: NodePort


为何要改呢?


kubectl get svc -A |grep kubernetes-dashboard## 找到端口,在安全组放行(如果是云服务器才需要开放端口)

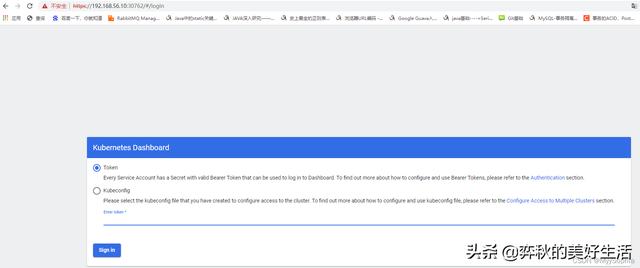

访问: https://集群任意IP:端口 https://139.198.165.238:32759


安装Kubernetes集群(2)

安装Kubernetes集群(2)


创建账号


3、创建访问账号


#创建访问账号,准备一个yaml文件; vi dash.yamlapiVersion: v1kind: ServiceAccountmetadata:  name: admin-user  namespace: kubernetes-dashboard---apiVersion: rbac.authorization.k8s.io/v1kind: ClusterRoleBindingmetadata:  name: admin-userroleRef:  apiGroup: rbac.authorization.k8s.io  kind: ClusterRole  name: cluster-adminsubjects:- kind: ServiceAccount  name: admin-user  namespace: kubernetes-dashboard


kubectl apply -f dash.yaml


[root@hadoop100 ~]#kubectl apply -f dash.yamlserviceaccount/admin-user createdclusterrolebinding.rbac.authorization.k8s.io/admin-user created


安装Kubernetes集群(2)


4、令牌访问


#获取访问令牌kubectl -n kubernetes-dashboard get secret $(kubectl -n kubernetes-dashboard get sa/admin-user -o jsonpath="{.secrets[0].name}") -o go-template="{{.data.token | base64decode}}"


生成的令牌


eyJhbGciOiJSUzI1NiIsImtpZCI6IkdvaXk4QnM5UE1Gb0wxaUpHeEhpQUlvZV8tc09MbEhSaFU4UWZwdjNQbVEifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLXo2OHNqIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiJiOTBlZTc4OS1hMTUwLTRjYWQtYmUzNC0zYTA0MDRjODE1Y2IiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZXJuZXRlcy1kYXNoYm9hcmQ6YWRtaW4tdXNlciJ9.J4Pr4YsPOadz0AUpaoELKNfeHvYwWFIiD1cMgbkR-AL6uHNbjXXD69ZNYgy7gWdHY5QQBNvXYhJc4t7EKUi1rDsEfWA_OivsLMuIWV_hfERv6vGY78ZnijW68z-fc7hzGkhwe-fUrnXCmieTxPdw945_jb7HmRLUIQt3baZvYY88XoHOUvOz0r_T_2PEAnKsoKzdpPTcIrtaOggFENstkoAe7dX5gXXFFO_EfM15UYXiXADFLqIBLllBGd2ECKAsOR3f_ViT2_Q8VViWwCld5zqKcG0GtOYIibIwYSTUPYwhdQidd9dUPlwuOPnXoK_26TUGPnR8fwPEeul3qPAZMw


保存好这个令牌,session掉了之后还需要这个令牌登录。

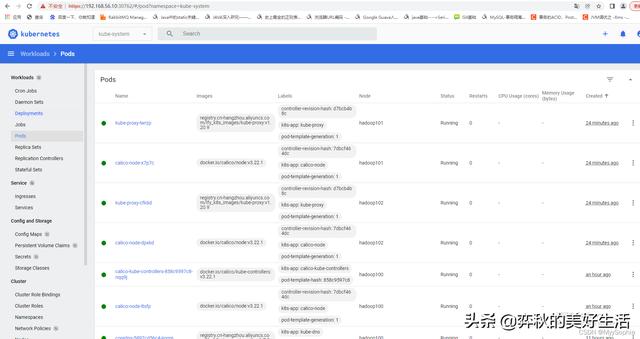

5、界面


安装Kubernetes集群(2)

安装Kubernetes集群(2)
